AXCO AX96 Butyl Hot Melt Tank, Hose & Gun

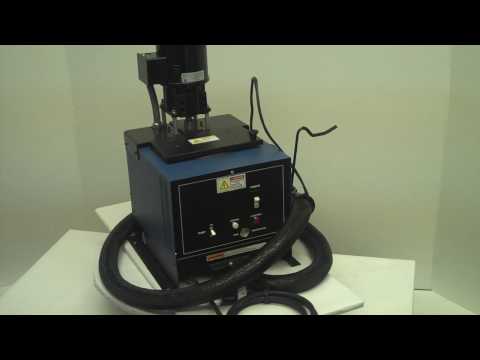

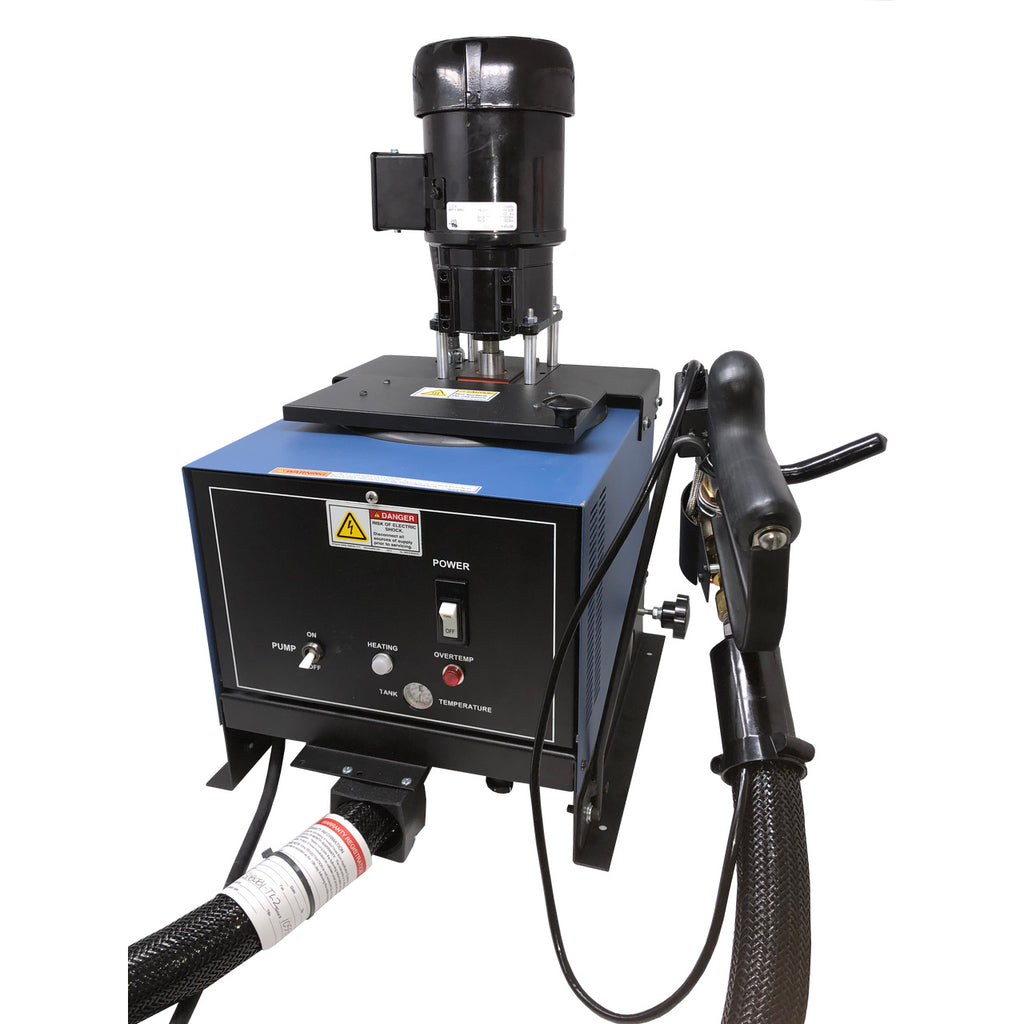

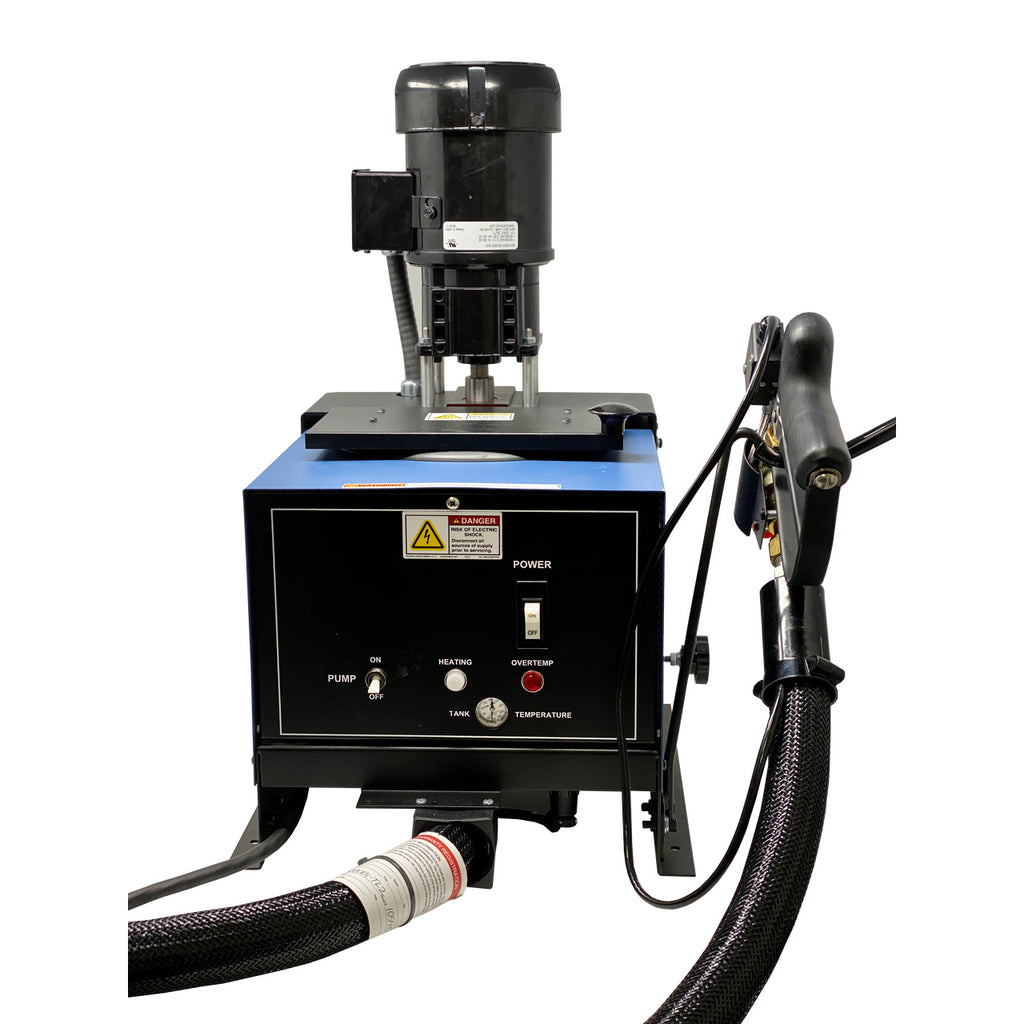

Axco AX96 Butyl Bulk Hot Melt Tank System Overview

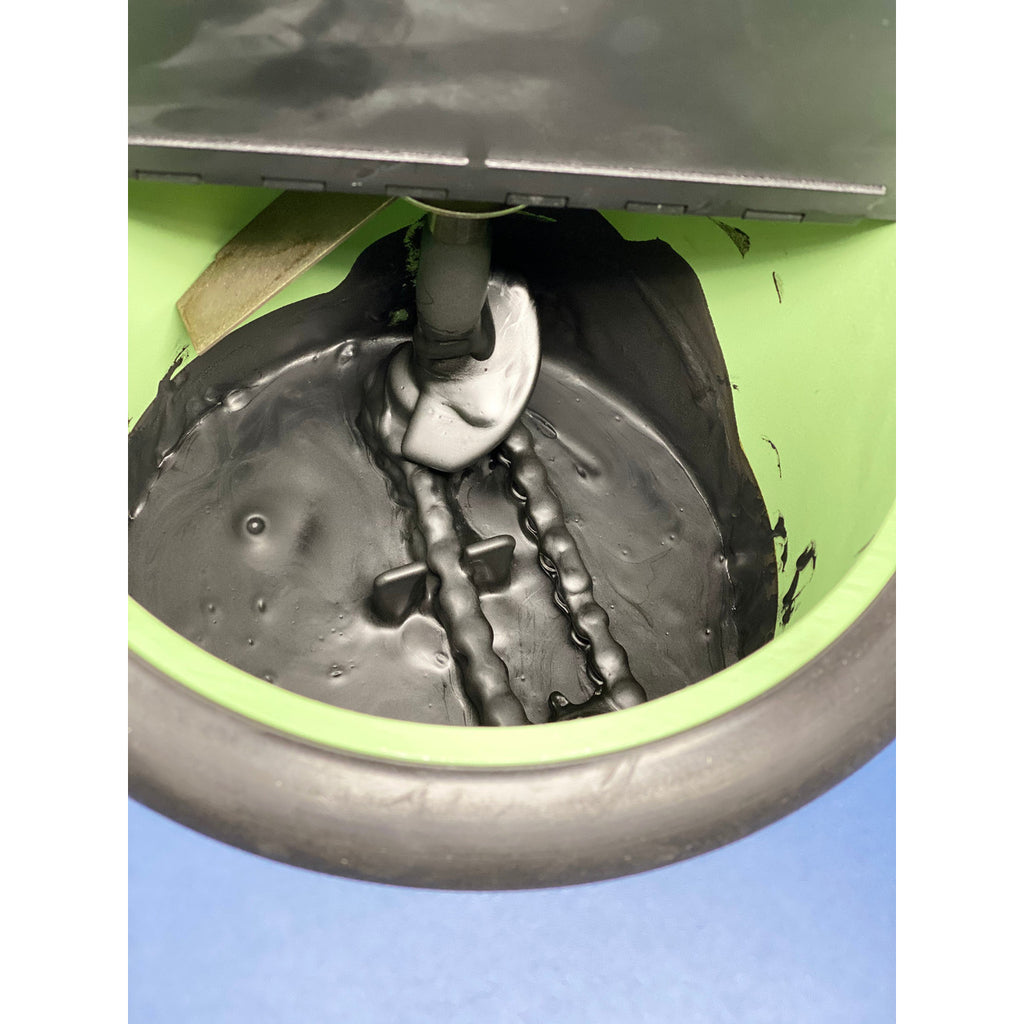

The Axco AX96 is a fully electric hot melt unit designed for high-viscosity butyl rubber-based sealants. It features a 10 lb. (4.5 kg) tank capacity, a powerful motor-driven gear pump, and precise temperature controls. The system includes a rotating chain and scraper assembly for efficient sealant melting and pumping. Encased in a robust industrial-grade sheet metal enclosure, it comes with an 8 ft. handgun/hose assembly and an optional 12 ft. hose. Ideal for insulated glass manufacturers, the AX96 offers significant cost savings and reliable performance.

Features and Benefits

• Simple, fully electric design
• Requires 120V AC single phase power
• Non-stick Teflon coated melt tank
• Powerful motor and gear pump with convenient flow control
• Adjustable temperature settings

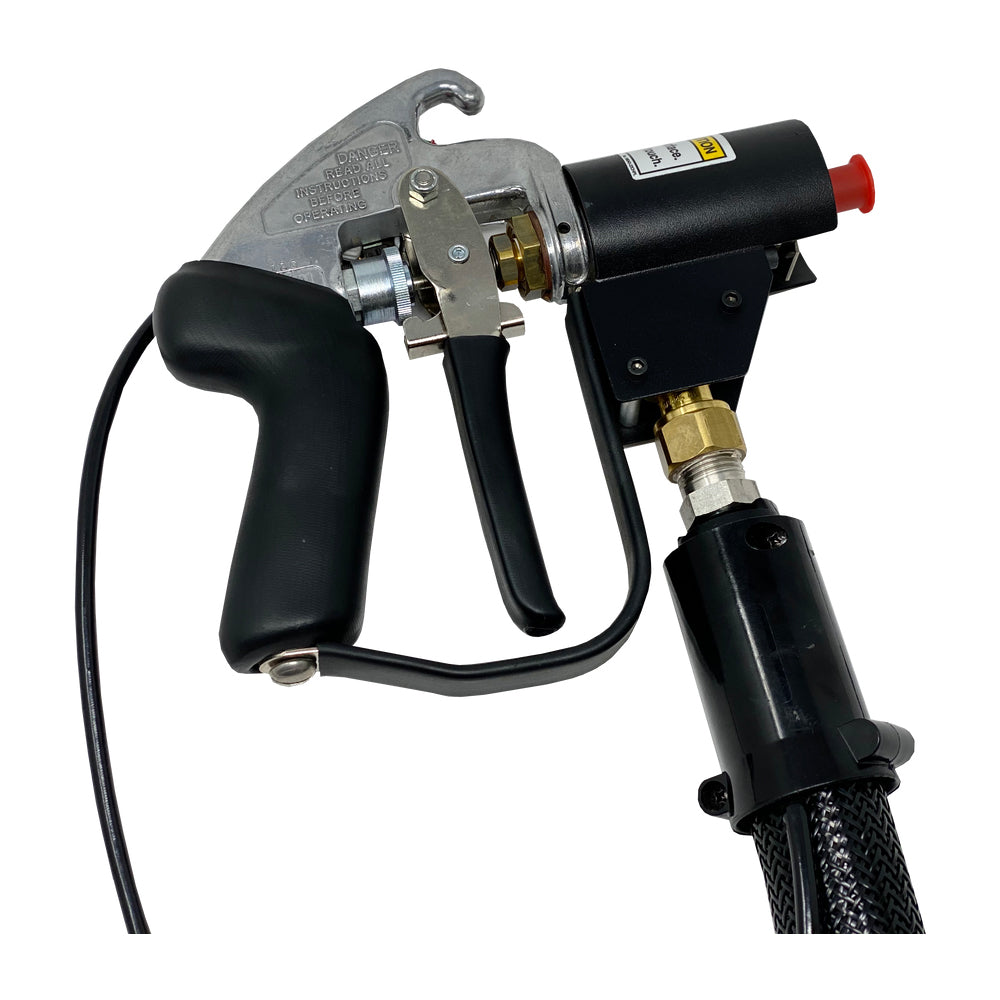

• Rugged 8 ft hose and versatile L2 handgun included
• Economical applicator for insulated glass manufacturers

Specifications

• Model: AX96
• Type: All-Electric Hot Melt Unit
• Application: High Viscosity Butyl Rubber Based Sealant
• Tank Capacity: 10 lb. (4.5 kg)
• Temperature Control: Bi-Metallic Thermostat
• Electrical: 120V AC
• Motor: 38/31 RPM, 60/50 Hz, 1/6 HP
• Hose: One (1) 8 ft. Hose Included (12 ft. Optional)
• Hand Gun: One (1) L2 Hand Gun Included
