Astro LS10 Complete Bulk Hot Melt Tank System

Astro Packaging LS10 Hot Melt System Overview

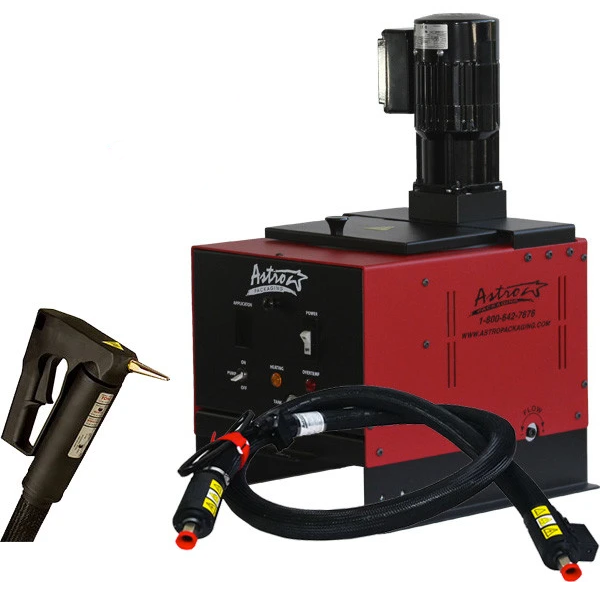

The Astro LS10 Bulk Hot Melt Tank is a reliable, all-electric system designed for manual packaging and product assembly. It serves as a quick and economical alternative to tape, cold glue, and metal fasteners. The LS10 includes a Teflon®-coated 10 lb. tank, along with a heated hose and handgun featuring a single orifice nozzle. The heated hose boasts durable construction with a reinforced Teflon® core and a stainless-steel braided cover.

The LS10 is user-friendly and easy to maintain. Simply connect it to an electrical outlet and allow it to heat up. After warming up, the pump switch on the control panel activates the motor-driven pump. This positive displacement gear pump can deliver up to 45 pounds (20.4 kg) of adhesive per hour, ensuring consistent and efficient performance. This tank system comes standard with one hose and hand gun and a second hose and gun can be added if needed.

The Astro LS10 is also available as a tank only without a hose and gun.

The LS10 system is a direct replacement for the Slautterback® Little Squirt and is compatible with the Little Squirt hose/gun.

Features and Benefits

• Easy-to-use all-electric design
• Includes tank, 8 ft. heated hose, and L4 bulk hand gun
• Lightweight for convenient portability
• Cool-touch melt unit and hoses for safety
• Handles various adhesive forms up to 25,000 cps, including pellets, granules, pillows, and blocks
• Adjustable temperature and flow settings
• Durable, fan-cooled AC gear motor with 44/36 rpm for extended lifespan
• Dependable positive displacement gear pump
• Supports one or two handgun/hose setups
• Compatible with both L1 and L4 handguns

Specifications

• Model: LS10
• Tank Capacity: 10 lb. (4.5 kg)
• Melt Rate: 8 lb./hr. (3.6 kg/hr.)
• Pump Rate: 45 lb./hr. (20.4 kg/hr.)
• Temperature Range: 100°F to 450°F (37.8°C to 232.2°C)
• Ambient Temperature Range: 20°F to 122°F (-6.7°C to 50°C)
• Temperature Control Stability: ± 25°F
• Hose/Applicator Capacity: 2
• Electrical Service:
  • 120V AC 50/60 Hz 12 A
  • 240V AC 50/60 Hz 12 A
• Viscosity (Max.): 25,000 cps
• Dimensions: 13.5" x 21.5" x 14"
• Weight (Empty) 64 lbs. (29 kg)
• Approvals & Certifications: CE
