Tec 7300 Multi-Load Pneumatic Spray Gun

Power Adhesives Tec 7300 Pneumatic Hot Melt Spray Gun Overview

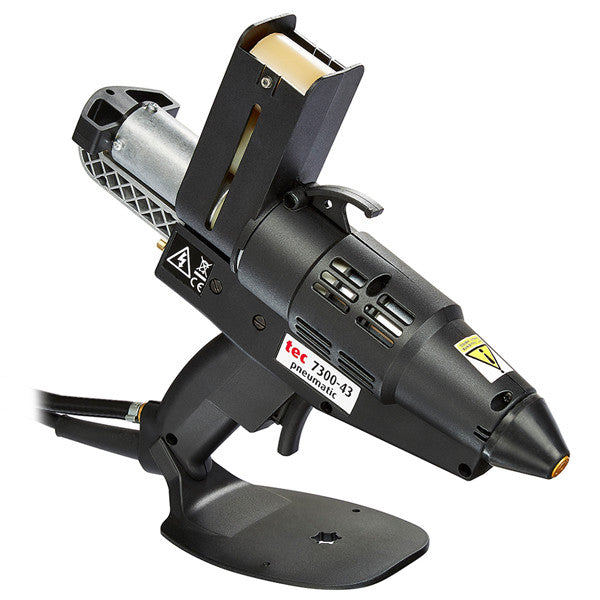

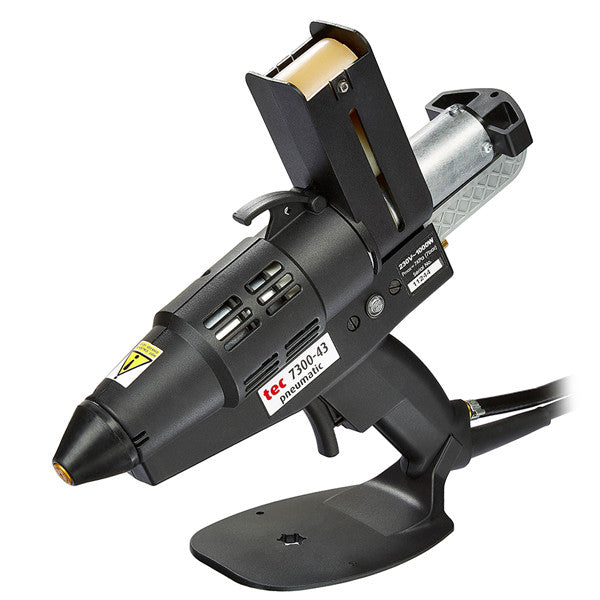

The Power Adhesives Tec 7300 is a pneumatically assisted, high-output 1-3/4" (43mm) hot melt spray gun, built for large-area bonding applications. Designed as an upgrade to the Tec 6300, this model features a speed loader for rapid reloading, a more powerful heating system, and enhanced spray coverage. With an impressive 11.25 lb (5.25 kg) per hour melt rate, an easy-click trigger, and a compressed air-powered swirl spray pattern, the Tec 7300 delivers precise, solvent-free adhesive application with maximum efficiency.

Looking for a trusted spray applicator with precise coverage? The Tec 6300 delivers high-performance spray bonding at 10 lbs/hr, perfect for heat-sensitive materials.

Tec 7300 Features & Benefits

• Pneumatic Spray System: Uses compressed air to create a swirl spray pattern, providing wide, even adhesive coverage.
• Solvent-Free & VOC-Free: A safer alternative to solvent-based adhesives, reducing the need for protective equipment.
• Extremely High Output: Dispenses 11.25 lbs (5.25 kg) per hour, making it Power Adhesives’ highest-output spray applicator.
• Speed Loader Magazine: Holds multiple glue slugs, allowing for quick reloading and uninterrupted operation.
• Easy-Click Trigger: A single press activates continuous spraying, reducing operator strain and increasing productivity.
• Cooler Application Temperature: Adhesive is applied at a lower temperature, preventing burns and protecting heat-sensitive materials.
• Removable Base & Built-In Stand: Adds stability while in use and removes easily for better reach in confined spaces.
• Certified for Safety: Meets UKCA, CE, and UL safety standards and includes a 12-month manufacturer warranty.

Specifications

• Model: Tec 7300-43
• Glue Size: 1-3/4" (43mm) Slugs
• Voltage 120V & 230V
• Wattage: 1000W
• Melt Rate: 11.25 lbs (5.25 kg)/hr
• Heater: Cartridge
• Feed System: Pneumatic
• Temperature: 350°F (180°C)
• Output Method: Spray
• Power Source: Power Cord
• Plug Type: U.S. Style
• Weight: 5 lbs (2.3kg)

Applications & Industries

• Large Surface Bonding
• Foam & Fabric Applications
• Furniture & Upholstery
• Packaging & Carton Sealing
• Automotive & Aerospace Assembly

Additional Spray Nozzles

• PA6045 Narrow angle spray nozzle 1.2mm (0.050”) orifice (Red)
• PA6046 Narrow angle spray nozzle 1.5mm (0.060”) orifice (Red)
• PA6056 Narrow angle spray nozzle 2.0mm (0.080”) orifice (Red)
• PA6060 Medium angle spray nozzle 2.0mm (0.080”) orifice (Yellow)
• PA6061 Medium angle spray nozzle 1.5mm (0.060”) orifice (Yellow)
• PA6064 Wide angle spray nozzle 2.0mm (0.080”) orifice (Blue)

Resources

• Tec 7300 Brochure
