Tec 6100 Pneumatic Extrusion Glue Gun

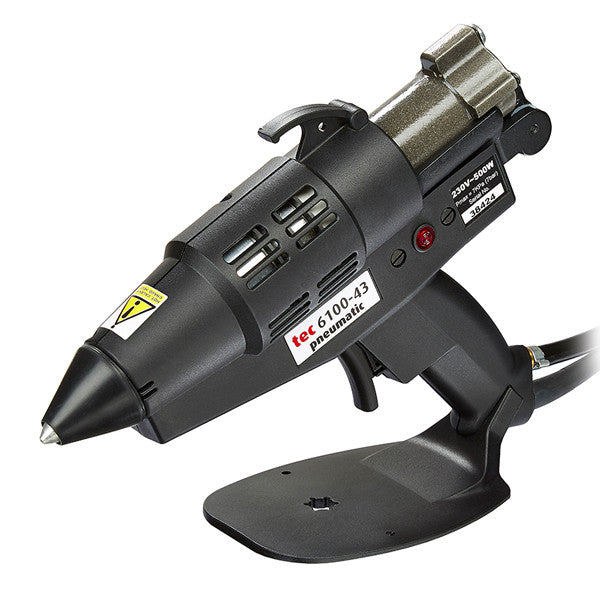

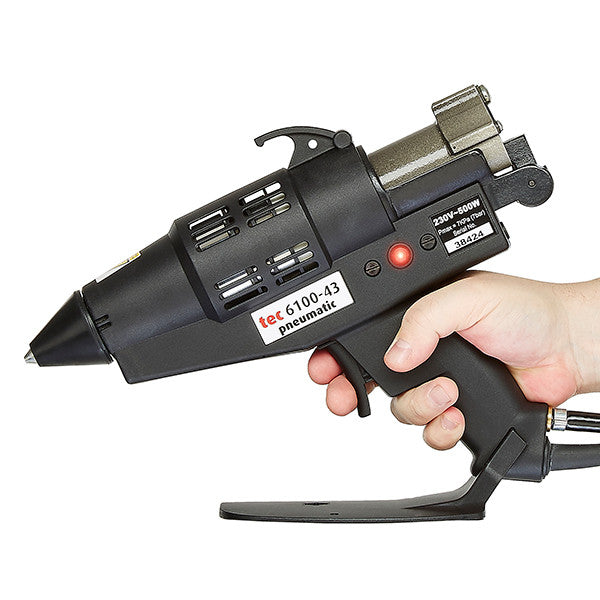

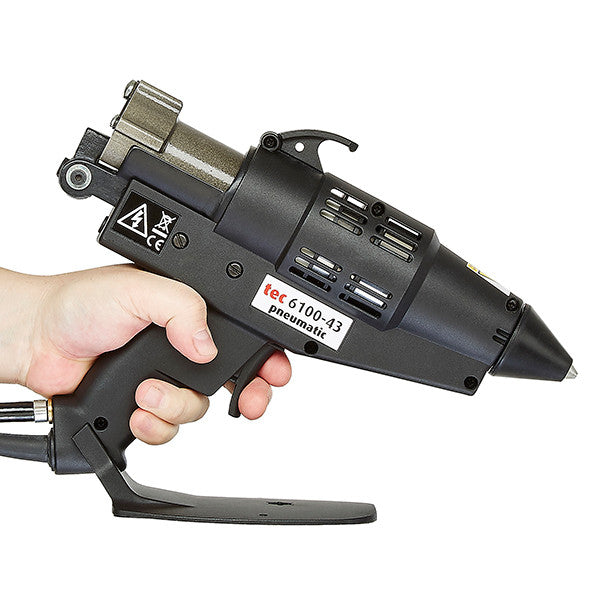

Power Adhesives Tec 6100 Glue Gun

The Power Adhesives Tec 6100 is a high-output, pneumatically assisted 1 3/4" (43mm) hot melt glue gun, built for industrial applications requiring continuous adhesive flow. With compressed air powering the feed mechanism, the Tec 6100 significantly reduces user fatigue while delivering a powerful 9 lbs (4.1kg) per hour output. Featuring an easy-click trigger, precision nozzle, and removable base, it provides effortless, high-performance adhesive application for packaging, product assembly, and manufacturing.

Need higher output and faster reloading? The Tec 7100 upgrades the Tec 6100 with a 1000W heater, 11 lb/hr melt rate, and speed loader for minimal downtime.

Features & Benefits

• High-Output Performance: Dispenses up to 9 lbs (4.1kg) per hour, ideal for high-volume applications.

• Pneumatically Assisted Feed: Compressed air operation ensures a steady adhesive flow while minimizing strain on the user.

• Easy-Click Trigger: One press of the trigger continuously dispenses adhesive until released, reducing fatigue.

• Precision Nozzle: Low-profile nozzle ensures accurate, mess-free application, even for intricate bonding.

• Removable Base & Built-In Stand: Provides stability when resting and detaches for better access in tight areas.

• Versatile Temperature Control: Compatible with interchangeable temperature modules for optimized performance with different adhesives.

• Certified & Reliable: Meets UKCA, CE, and UL standards and includes a 12-month manufacturer warranty.

Specifications

• Model: Tec 6100-43

• Glue Size: 1-3/4" (43mm) Slugs

• Voltage 120V & 230V

• Wattage: 500W

• Melt Rate: 9 lbs (4.1kg)/hr

• Heater: Cartridge

• Feed System: Pneumatic

• Temperature: 265°F to 380°F (130°C to 195°C)

• Output Method: Bead

• Power Source: Power Cord
• Plug Type: U.S. Style

• Weight: 3 lbs (1.4kg)


Applications & Industries

• Packaging & Carton Sealing

• Product Assembly & Manufacturing

• Furniture & Upholstery

• Automotive & Aerospace Bonding

Power Adhesives Tec 6100 Nozzles

• Slotted Spreader Nozzle (ADJ004)
• Standard Nozzle (ANZ016)
• Spreader Extension Nozzle (ADJ012)
• Angled Extension Nozzle (ADJ013)
• Precision Extension Nozzle (ADJ014)
• 2 Hole Nozzle (ADJ015)
• 3 Hole Nozzle (ADJ016)
• 'L' Nozzle (ADJ017)
• 'T' Nozzle (ADJ018)

Resources

• Tec 6100 Brochure
