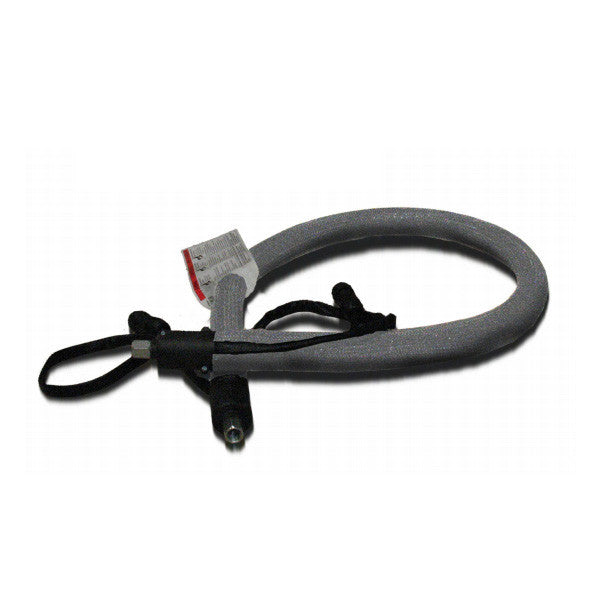

Graco InvisiPac Standard Heated Hot Melt Hose

Graco InvisiPac Standard Hot Melt Hose Overview

Graco InvisiPac Standard Hot Melt Hoses are designed for use with Graco InvisiPac tankless hot melt systems, ensuring precise temperature control and consistent material flow. Engineered for dry working environments, this hose features a durable gray braided scuff guard for added protection. With a maximum operating temperature of 400°F (204°C) and a fluid pressure rating of 1,500 psi (103 bar), it provides reliable performance for high-demand applications.

Features and Benefits

• Designed for InvisiPac Systems: Specifically engineered for use with Graco InvisiPac tankless hot melt systems.

• Precise Temperature Control: Ensures consistent heating and material flow for optimal performance.

• Durable Scuff Guard: Gray braided outer layer enhances durability in dry working environments.

• Multiple Length Options: Available in 4 to 25 ft. to suit various application needs.

• High-Temperature & Pressure Rating: Operates at up to 400°F (204°C) and 1,500 psi (103 bar) for demanding applications.

• Dual Electrical Connectors: Includes two connectors for seamless integration with Graco temperature controllers.


Specifications

• Product Type: Standard InvisiPac Heated Hose

• Core Size: No. 6 Core

• Hose Length: 4 - 25 ft.

• Hose Fluid Fittings: 0.31 ID (9/16-18 JIC(f))

• Maximum Fluid Working Pressure: 1500 psi (103 bar, 10 MPa)

• Maximum Temperature: 400°F (204°C)

• Power Requirements: 230 VAC, 50/60 Hz

• Wetted Parts: PTFE Core, SST Couplings

• Power Consumption: 60 watts per foot of hose; 25 ft. hoses use 50 watts per foot

• Minimum Bend Radius: 8 in. (203 mm)
